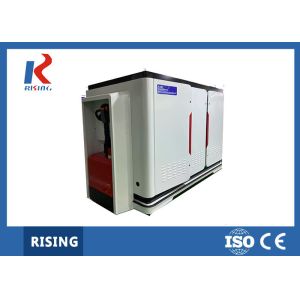

Full Automatic Transformer Test Machine With Integrated Test System

Name: Full Automatic Transformer Test Machine With Integrated Test System
Brand: RISING
Price: 1 USD

Ask Latest Price

Brand Name :RISING

Model Number :RS1HS-BYQ-I

Certification :ISO CE

Place of Origin :China

MOQ :1 Set

Payment Terms :T/T, Western Union, MoneyGram,L/C, D/A, D/P,

Supply Ability :100 SET PER Month

Delivery Time :20 working days

Packaging Details :Wooden package for export

Voltage :0.1-800V

Current :0.1-300A

Power :U*I

Power factor :0.1-0.9999

Power supply :AC380V±10% 50Hz±2%

Working temperature :0-40℃

Relative humidity :30%-90%

Outline dimension :Customization

Contact Now

Add to Cart

View Product Description

RS1HS-BYQ-I Full Automatic Transformer Testing Equipment Intelligent Transformer Integrated Test System

Product Description

RS1HS-BYQ-I Intelligent Transformer Integrated Test System conforms to GB50150/IEC 60076-3 and other relevant standards.The Intelligent Transformer Integrated Test System produced by our company mainly tests the no-load and load caracteristics of power transformers and distribution transformers,but also carries out frequency doubling induction and power frequency withstand voltage tests on the tested transformers.All tests can be fully automatic operation,no need for personal to carry out complex operation and calculation can automatically display the calculation results.

Feature

The Transformer test cabinet include below equipment:

Power Analyzer

YOKOGAWA GM-10 Series High Accuracy Temperature Inspection Instrument

Double-Channels DC Resistance Tester

Transformer Turns Ration Tester

RSHL-200 High Precision Current Instrument Transformer

Insulation Resistance Tester

Technical Parameters:

Item	Scope of Measurement	Relative Error
Voltage	0.1-800V	±(0.2% reading + 0.1% range)
Current	0.1-300A	±(0.2% reading + 0.1% range)
Power	U*I	±(0.2% reading + 0.1% range)
Power factor	0.1-0.9999	±3 figures
Power supply	AC 380V±10% 50Hz±2%
Operating condition	Working temperature: -20℃-40℃ Relative humidity <90%
Outline dimension	Customization
Weight	Customization
